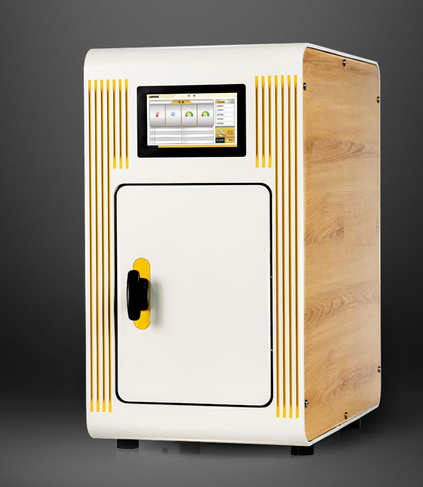

Gas Transmission Rate Test System, based on the test principle of differential pressure method, is professionally suitable for the determination of gas transmission rate, solubility coefficient, diffusion coefficient and permeability coefficient at varied temperatures of plastic film, containers, composite film, high barrier materials, sheet, metal foil, etc. The test system conforms to GB, ISO, ASTM and other national and international standards.

1. Precise Data

• Imported high precision vacuum sensor for accurate and repeatable test of high barrier materials.
• Automatic pressure compensation technology in the test process with constant pressure difference.
• Imported temperature control system to ensure temperature control accuracy.
• Use 360° airflow circulation constant temperature technology with better temperature stability.
• Imported pneumatic control system with ultra-low failure rate and super long service life to ensure that the overall system is well sealed.
• Reference films for rapid calibration are provided to ensure accuracy and versatility of the test data.

2. Dual-Testing for Film & Container

• In the same test cabinet, film and container samples are tested independently to ensure a consistent test environment.
• New patent dual-function test cell can realize quick switching between functions.
• Automatic translation technology is applied in the test cell, and the operating space is widened.
• Automatic clamping saves time and labor; clamping strength is consistent with better sealing and with no safety risk.
• Test time of medium and low barrier film materials < 4 hours (including vacuuming time).
• Test time of high barrier film materials < 8 hours (including vacuuming time).

3. Smart Control

• Color industrial-grade touching screen and desktop operating system, simple and convenient.
• Fully automatic testing and data saving with no manual intervention.
• Check port is available for quick calibration.
• Test system is equipped with various sensors for intelligent reminding and safer control.
• Built-in calendar, multi-language switch, multi-level authority management and other functions.
• Can be connected to a needle micro printer for the output of test results to realize long term result storage (Optional).
• Test system is embedded with network port, which is convenient for external access, data transmission and remote upgrading.

4. Multi-System Connectable

• New generation platform computer software (Optional).
• One computer can be interconnected with multiple test system mainframes.
• The software can independently control each mainframe, and the test data is centrally managed by the platform.
• The software displays real-time pressure-time curve, transmission rate-time curve, and temperature-time curve.
• Research test mode of the software provides flexible parameter setting and function setting, which is easy to analyze gas transmission rate, solubility coefficient, diffusion coefficient and permeability coefficient of the sample.
• The test system meets the requirements of GMP for data traceability and meets the needs of the pharmaceutical industry (Optional).
• DataShield^TM Data Shield System is convenient for centralized data management and information system connection (Optional).

5. Extensive Functions

• The system supports tests of single gas and mixed gas as well as flammable and explosive dangerous gases.(System for dangerous gas needs to be customized.)
• The system can test gases of different humidity levels with automatic and precise control and no manual intervention. (Customized)
• Innovative data fitting function can fit the gas transmission rate, permeability coefficient, solubility coefficient, and diffusion coefficient of materials at the ultimate temperature.
• The test system truly meets the requirements of the differential pressure method test standard, and can be measured.

Low-Carbon & Energy-Saving

• Intelligent frequency conversion control technology makes the system operate with low power consumption.
• Vacuum pump automatic start and stop control technology is energy saving.
• Without computer, the test system can complete tests independently.
• No need for a professional constant temperature laboratory while stable test data can be obtained with low costs for laboratory construction and daily energy consumption.
• Manufactured with world famous brand low energy consumption components with stable and reliable performance.

ISO 15105-1, ISO 2556, GB/T 1038, ASTM D1434, JIS K7126-1, YBB 00082003
