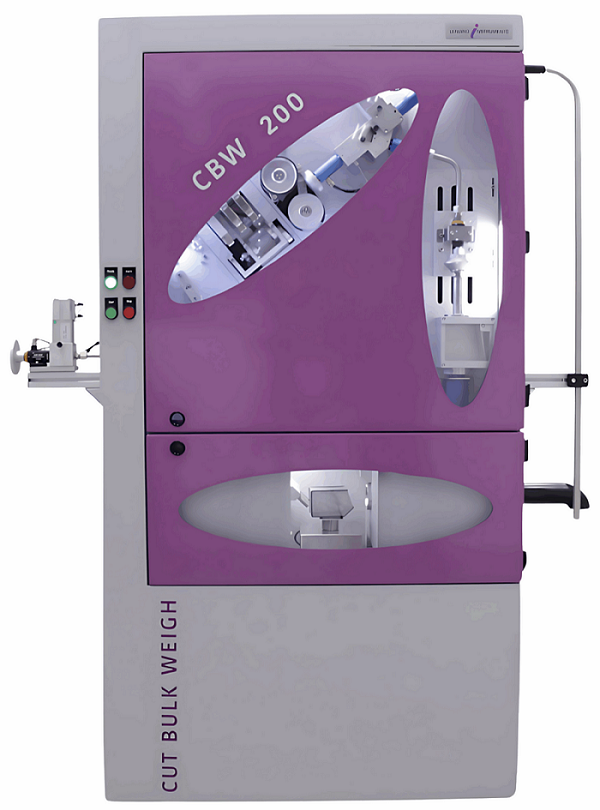

The CBW 200 is a fully automated testing system specifically designed to measure the bulkiness and fineness of Air Textured Yarn in a single, continuous process.

The CBW 200 supports both laboratory testing and production line quality control. The instrument features automatic yarn handling, built-in calibration functions, and a freely programmable control system. Its compact and robust design allows for flexible installation, while the integrated software enables efficient data management and quick adjustment of test parameters.

Test Method:

• Bulkiness measurement is performed by feeding the yarn at a constant speed into a fixed-volume test chamber, recording the time required to fill the chamber. Fineness is measured using the well-established Automatic Cut & Weigh principle.
• Both tests are completed in one continuous process, including automatic yarn threading and automatic yarn removal. The system is designed in accordance with ASTM D6587, ensuring accurate and highly reproducible test results.

Benefits:

• Dual-function testing – The CBW 200 simultaneously measures bulkiness and fineness in a single automated test process, eliminating the need for separate instruments and reducing testing time.

• On-site quality monitoring – The CBW 200 can be placed close to the spinning production line, providing real-time feedback on yarn quality, helping to reduce waste and optimize production efficiency.

• Easy operation – The integrated software allows quick adjustment of test parameters, automatic data transfer, and long-term storage of test results, requiring no specialized training to operate.

• Stable and repeatable results – Automatic calibration and automatic pretension adjustment ensure high reproducibility across different test batches, even with different types of yarn.

• Optional automation upgrades – Efficiency can be further enhanced with barcode sample identification, Ethernet IP connectivity, and the SESS automatic bobbin exchanger, supporting multi-position sampling and testing.
