Provides accurate, repeatable measurements of the performance of protective clothing and equipment in a flame environment that simulates control of heat flow, flame distribution, and burning time.

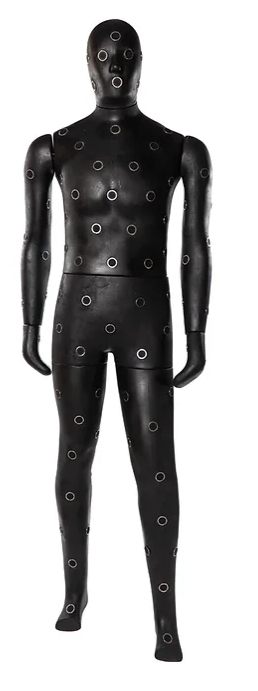

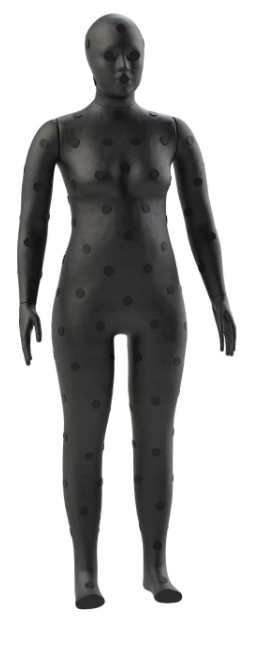

- The mannequin shell is made of composite materials, completely fireproof material, and durable The joints of the mannequin are adjustable and can be put in various poses.

- Data acquisition components are located within the manikin body to digitize signals near their source for highest accuracy measurements.

- Friction joints at the shoulders allow range of motion above the head and behind the back for manikin dressing.

- Standard mounting support and cable pass-thru located at the back of the neck for minimum influence on garment fit and flame exposure.

- 134 precision calorimeter heat sensors measure the incident heat flux over a range from 0.0 to 4.0 cal/cm2 •s (167 kW/m2).

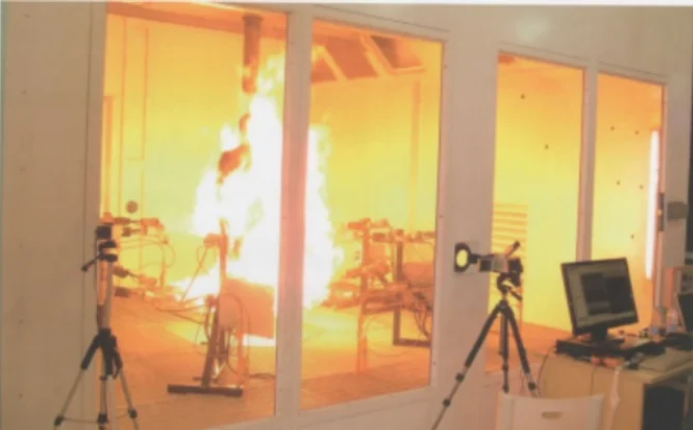

- Chamber includes a gas distribution system and 12 torch array to apply a uniform flame front onto the manikin.

- The pre-designed exhaust system of the combustion box not only supplements the oxygen required for combustion but also exhausts the gas and heat generated after the combustion is completed.

- NFPA86 compliant fuel train with redundant electronic and manual gas shutoff valves provides stable fuel flow and protects the system and operators.

- Proprietary ThermDAC control software.

ASTM F1930, ISO 13506, NFPA 2112
