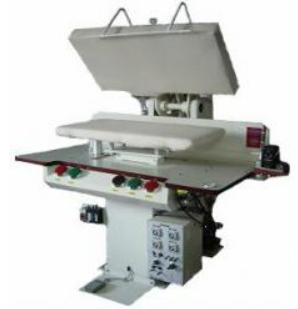

This apparatus is suitable to the determination of textile dimensional change, developed for corresponding to [Determination of textile dimensional change in pressure steam（H method）].

The measuring time of Heat, steam-jet, steam-suction and end-suction are set by four timers.

It can measure automatically upon the sample installed.

• Pressure mode: Air compressor.
• Pressure range: 10～40KPa/cm2.
• Dimension of iron film: W800×D400mm.
• Steam-jet mode: Jetting up and down.
• Steam adjustment: Hand-control (common vapor pressure：490KPa).
• Up film heater: 3KW.
• Max. temperature: 180℃（with controller).
• Timer: Steam-jet timer Heat treatment timer Steam-jet and suction timer Suction timer up film raising.
• Setting range of timer: 0～30秒.
• Dimensions:（Approx.）W1200×D1200×H1500mm.
• Power source: AC230V 50Hz.

JIS L 1096 standards
