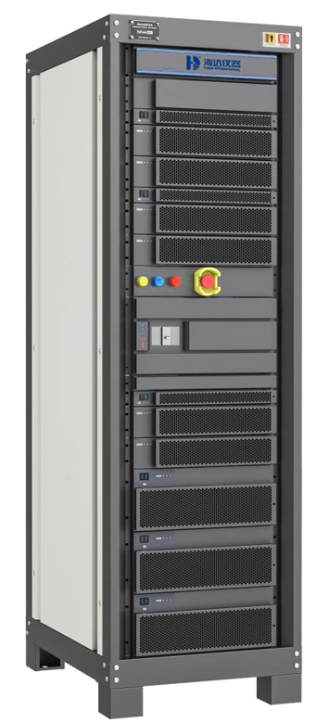

Power battery module/pack testing system
Applied in the testing and quality control of lithium battery modules & packs such as new energy vehicles, energy storage base stations, and can realize the integration of charging and discharging data monitoring.
Product Description
Power battery module/pack testing system 100/500V applied in the testing and quality control of lithium battery modules & packs such as new energy vehicles, energy storage base stations, and can realize the integration of charging and discharging data monitoring.
Product Specifications
| Models | 8011-HD | |||||
| AC parameters | Wiring method | Three-phase five-wire system | ||||
| Power supply voltage | 380±10% VAC | |||||
| Power supply frequency | 50±5% Hz | |||||
| Power factor | > 0.99 | |||||
| Max. power feedback efficiency | ≥ 90% | |||||
| THD | ＜5% | |||||
| DC parameters | Output current | 100A, 150A, 200A, 300A, 400A, 600A | ||||
| Total output power | 10KW-120KW | |||||
| Single channel voltage range | 100V~500V | |||||
| Voltage accuracy | ± 0.05% F.S | |||||
| Voltage resolution | 1mV | |||||
| Current accuracy | ± 0.05% F.S | |||||
| Current resolution | 1mA | |||||
| Current response time | 3ms（10%~90% F.S） | |||||
| Current switching time | 5ms（-90%~90% F.S） | |||||
| Upper computer software function | Charging mode | CC, CV, CCCV, CP, Slope etc. | ||||
| Discharge mode | CC, CV, CP, CR, Slope etc. | |||||
| Other working mode | Still,Working condition test,Pulse test (pulse width 20ms),DCIR etc. | |||||
| Test cut-of condition | Battey voltage, current, time, capacity, temperature BMS parameters etc. | |||||
| Data export Format | Excel, TXT etc. | |||||
| Data recording interval | 10ms | |||||
| Editable step | Max.10000 | |||||
| Programmable step | Max.10000 | |||||
| Nested loop | Max.10 layers | |||||
| Software protection | OCP/OVP/UVP/Reverse or wrong connection protection/ Protection for abnormal communication | |||||
| Third-party Device Integration | Support linkage of temp. chamber, MTV/MTS, and I/O control box | |||||
| Other parameters | IP grade | IP20 | ||||
| Working temperature | 0℃~40℃ | |||||
| Cooling method | Forced Fan-cooled | |||||
| Noise | ＜75dB | |||||
| Cabinet size（W*D*H mm） | 600*850*1030/600*800*1980 | |||||
Products Function Test
Cycle life test
Charging/discharging test
Battery capacity test
Temperature characteristic test
Charge retention test
High-speed working condition pulse test
Static/dynamic SOC test
DCIR test
Products Advantages
Support single battery voltage consistence test;
Support multi-channel charge-discharge curve comparison;
Support multi-channel parallel;
Power factor value up to 0.99;
Anti-reverse connection and data protection;
Battery discharge and energy feedback efficiency ≥90%;
Modular design, easy for maintenance;
Support RS485/CAN communication, baud rate is changeable;
Support DBC import at one-click;
Support user-defined BMS values as control/protection parameters;
BMS voltage and current following test;
User-defined login management rights are supported.
