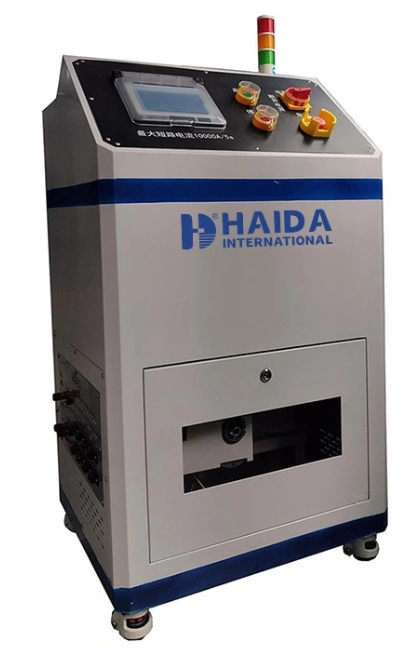

EV Battery Pack Short Circuit Tester

Lượt xem : 19

FEATURES

1. The device has three relatively independent control modes: remote PC+ on-site touch screen + remote control. The parameters such as current, voltage and temperature can display the record.

2. There are total voltage, cell voltage, temperature, data record and data curve, etc.

3. High current short circuit switch power is small, energy saving and environmental protection, with double protection system, and intelligent temperature protection, arc extinguishing and rust prevention

4. Remote control monitoring system All control parameter settings, data acquisition, video recording can be operated by a computer with a distance of >30m;

5. The equipment can be tested with domestic and foreign standards such as GB31241, GB/T31485, GB/T314673, IEC62660-2018.

STANDARD FEATURES

Model	HD-H201-1
External dimension(WDH)	7808801400mm
Short circuit way	Ambient temperature
Short circuit current	16000A
Control cabinet internal resistance	<1mΩ
Resistance box (optional)	Resistance range	5-100mΩ adjustable
	External dimension	1600W1500D1800Hmm
Control way	Touch screen + remote PC control
Current	Precision	±0.5%FS
	Sampling period	0.1-100ms
Power supply	AC220V
Arc extinguishing device	Vacuum arc extinguishing (high current short circuit switch)
Mechanical life	300,000 times
Electrical life	Resistive load 50,000 times
Heat dissipation method	Air cooled
Observation port	Have
Voltage acquisition	Voltage	0-10V; 0-100V; 0-1000V
	Number of channels	Standard 8 Road (according to customer needs)
	Precision	0-10V: 0.15%F5; 0-100V: 0.3%FS; 0-1000V: 0.3%FS;
Temperature collection	Temperature range	0-1300℃
	Number of channels	Standard 8 Road (according to customer needs)
	Precision	±2.5℃
