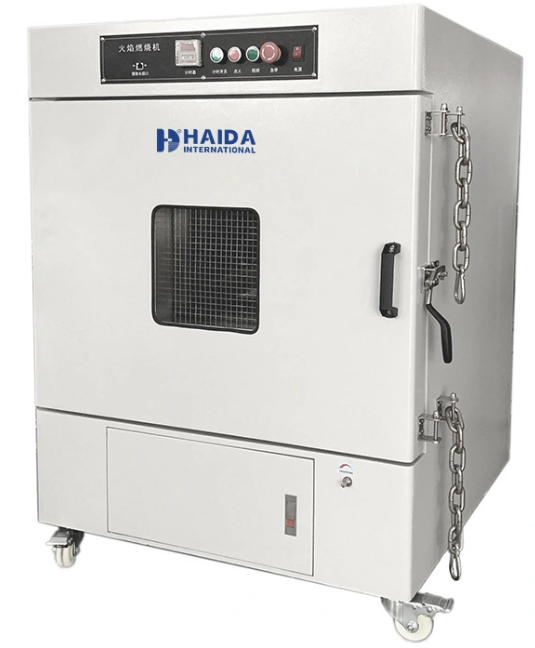

EV Battery Cell Fire Tester
APPLICATION
According to the temperature required for firing the battery, there are 3 intervals: 300-600℃; 600-900℃; 900-1200℃, the overall design of the combustion equipment for the first selected temperature point in the three intervals for locked combustion.
STANDARD PARAMETERS
|
Model |
HD-H214 |
|
|
Temperature range |
Interval A |
300-600℃ |
|
Interval B |
600-900℃ |
|
|
Interval C |
900-1200℃ |
|
|
Precision |
±20℃ |
|
|
External Size (W*D*H) |
900*1140*1200mm |
|
|
Console size (W*D*H) |
600*400*1200mm |
|
|
Applicable battery specifications |
EV steel shell |
|
|
Compatible product range (W*D*H) |
400*400*200mm |
|
|
Battery weight |
≤20KG |
|
|
Burning time |
1s-60000s |
|
|
Flame height |
100-150mm |
|
|
Equipment structure |
Open front and rear |
|
|
Lighter |
Automatic high pressure package ignition |
|
|
Air supply method |
Automatic air supply to meet different oxygen levels |
|
|
Insulation material |
High temperature resistant fire rock wool |
|
|
Wind speed |
Automatic control |
|
|
Alarm function |
Foldable three-color lamp, abnormal operation alarm |
|
|
Protective function |
Limit protection, foolproof function, safety protection |
|
|
Equipment material |
Aluminum profile + cold rolled steel plate, painted, color is standard warm gray 1C (color can be customized) |
|
|
Combustion gas |
gas |
|
|
Ground bearing |
Requires solid ground, bearing 1T/m3 |
|
|
Power supply |
AC220V |
|
