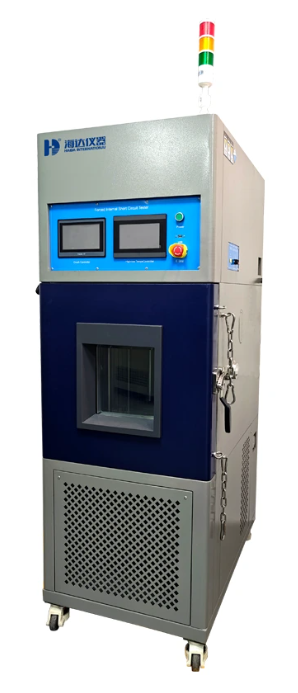

Battery Short Circuit Test Chamber
Battery Short Circuit Test Chamber is used to test whether the battery will explode and catch fire when a certain resistance is short-circuited under high temperature, and at the same time display the maximum short-circuit current through the relevant instrument.
Product Description
Temperature control battery short circuit test chamber is used to test whether the battery will explode and catch fire when a certain resistance is short-circuited under high temperature, and at the same time display the maximum short-circuit current through the relevant instrument.
During the test, the surface temperature of the sample should not exceed 170°C. After the test is completed, the sample shall be a qualified product without decomposition, cracking and fire phenomenon.
Test requirements: IEC 62133-2017 UL 1642 UN 38.3
Product Specifications
| Model | 201-HD |
| Inner box size | 500x500x500mm (width x depth x height); |
| Equipment dimensions | 700x800x1530mm (width x depth x height); |
| Internal material | SUS201 stainless steel plate, thickness 1.2mm, with Teflon affixed; |
| External material | 1.5mm thick cold-rolled steel plate with paint treatment; |
| Observation window | The size is 250x250mm two-layer tempered glass, the transparent window is equipped with stainless steel mesh; |
| Smoke outlet | 100mm in diameter, located at the back of the box; |
| Pressure relief port | The size of the opening is 200x200mm, located on the back side of the box. When the sample explodes, the pressure relief port will pop open to relieve the pressure; |
| Box door | The single door opens to the left, the box door is equipped with a safety limit switch, and the side is equipped with an explosion-proof chain. The device can be operated only when the box door is closed to ensure the safety of personnel; |
| Test hole | There are 2 test holes with a diameter of 50mm on the left side of the device, which are convenient for putting in the collection lines of temperature, voltage, current, etc.; |
| Lighting device | It is convenient to observe the state of the tested sample; |
| Temperature collection range | RT-1000℃; |
| Temperature acquisition channel | 1 channel; |
| Temperature display accuracy | ±0.5℃; |
| Voltage acquisition range | 0-100V; |
| Voltage acquisition channel | 1 channel; |
| Voltage display accuracy | ±0.5%; |
| Maximum short-circuit current | 1000A; |
| Current acquisition channel | 1 channel; |
| Current display accuracy | ±0.5%; |
| The internal resistance of the device loop | 80±20mΩ; |
| Equipment movement | There are four universal casters at the bottom of the equipment, which can be moved freely; |
| Control method | PLC touch screen control; |
| Equipment weight | 85Kg |
| Power supply | AC220V;50Hz/60Hz |
Products Advantages
Precise Temperature & Humidity Control
Ensures consistent and accurate conditions, enhancing test reliability.
High Current & Voltage Testing
Supports a wide range of current and voltage levels to accommodate various battery types and standards.
Eco-Friendly & Energy Efficient
Low energy consumption and sustainable materials reduce environmental impact.
Comprehensive Safety Features
Equipped with explosion-proof systems, fire suppression, and alarms for maximum operator safety
Advanced Data Logging & Analysis
Real-time monitoring and automated data collection simplify analysis and compliance reporting.
Fully Customizable Design
Tailored to specific industry needs with modular options and upgradeability
