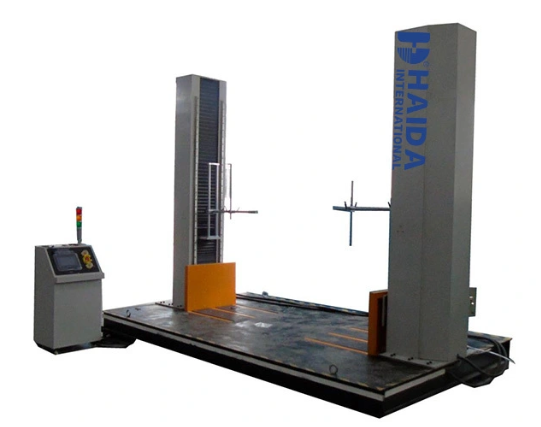

Battery Pack Drop Tester
FEATURES
1. The equipment adopts double guide rail, electric lifting system.
2. The device has a simple fixture to facilitate the clamping of the sample.
3. The equipment can achieve low height drop test of rib, face and angle. The drop height can start from zero.
4. The device can perform the drop in one arm, meet the drop requirements of the single battery and the battery pack, and realize the battery test of different sizes.
5. It has two relatively independent control modes, remote and on-site. The battery lifting height can be preset and displayed, and the release process can be automatically controlled.
6. The working area of the device is equipped with sensing device, accompanied by sound and light alarm.
STANDARD PARAMETERS
|
Model |
HD-H202-1 |
|
Maximum drop weight |
2000KG |
|
Maximum sample size (W*D*H) |
2500*1800*600mm (customized size) |
|
Single arm maximum battery size (W*D*H) |
1500*1000*600mm (customized size) |
|
Drop height |
0-1500mm |
|
Displacement accuracy |
±5mm |
|
Control way |
On-site touch screen (independent control cabinet) + remote PC |
|
Platform size |
2600*3000mm |
|
Drop way |
Edge/angle/face all-round drop, electromagnetic and pneumatic integrated |
|
Drop medium |
Cement surface / iron plate / customer specified |
|
Equipment structure |
Open type |
|
Alarm function |
Foldable three-color lamp, abnormal operation alarm |
|
Protective function |
Upper and lower limit protection, foolproof function |
|
Equipment material |
Channel steel + cold-rolled steel plate, painted, color is standard warm gray 1C (color can be customized) |
|
Ground bearing |
Requires solid ground, bearing 5.5T |
|
Power supply |
AC380V |
|
Gas source |
0.8Mpa |
