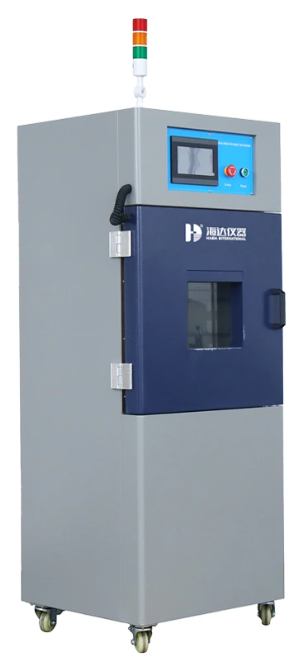

Battery High Altitude Low Pressure Simulation Test Chamber
Battery High Altitude Low Pressure Simulation Test Chamber is designed for UL, EN, IEC and other standard test requirements to achieve the low pressure storage state of the sample in a short period of time.
Product Description
Battery High Altitude Low Pressure Simulation Test Chamber is designed for UL, EN, IEC and other standard test requirements to achieve the low pressure storage state of the sample in a short period of time, can automatically control the test cycle, the whole process of monitoring the change of air pressure in the box, to achieve the automatic termination of the test. Simulate the battery and battery pack in the pressure is equal to or less than 11.6kPa and the ambient temperature is (20 ± 5) ℃ storage conditions for 6 hours, the battery to not explode and not fire as qualified.
Test Standard: GB/T 31485-2015.GB/T 31241-2014.UN 38.3.IEC 62133.UL 1642:2012
Product Specifications
| Model | 204-HD |
| Inner box size | 400*400*400mm (W*D*H) |
| Equipment size | 630*620*1130mm (W*D*H) |
| Inner box material | SUS304 stainless steel plate, 3.0mm thick |
| Outer box material | Cold-rolled steel plate baking paint treatment, 1.5mm thick |
| Viewing Window | Size 250*250mm two layers of tempered glass, transparent window with stainless steel mesh |
| Equipment Mobility | The bottom of the equipment has four universal casters, which can be moved freely |
| Pressure range | 0.5-100kPa, commonly used test air pressure 11.6 kPa |
| Vacuum level display | SMC meter digital display type |
| Control method | Push-button control |
| Timer | LED digital display, free setting within 0-9999h |
| Pressure fluctuations | ≤5% |
| Box door | Single door with left opening and explosion-proof chain on the side of the door |
| Storage tray | 2 |
| Equipment weight | 120kg |
| Power supply | AC220V |
| Power | 1kW |
Products Advantages
High Altitude Simulation
Accurately replicates high-altitude conditions to assess battery performance in extreme environments.
Low Pressure Control
Precisely simulates low atmospheric pressure, ensuring reliable testing at different altitudes.
Advanced Temperature Regulation
Offers precise temperature control, from freezing to high heat, for comprehensive testing.
Safety & Reliability Testing
Provides critical data on battery safety, performance, and life expectancy in challenging conditions.
Durability & Build Quality
Designed with high-strength materials, ensuring long-term durability and resistance to wear.
Real-World Simulation
Provides highly realistic testing environments, mimicking actual operational conditions for accurate results.
