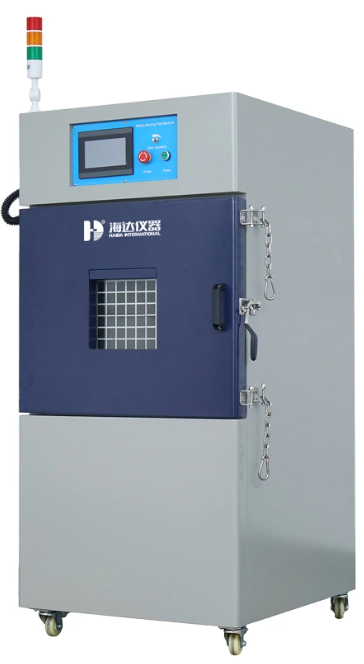

Battery Fire Test Chamber

Lượt xem : 14

Battery Fire Test Chamber suit for lithium battery (or battery pack) flame resistance test.

Product Description

Battery Fire Test Chamber suit for lithium battery (or battery pack) flame resistance test. Drill a circular hole with a diameter of 102mm on an experimental platform, place a wire mesh on the round hole, place the battery on the wire mesh screen, install an octagonal aluminum mesh around the sample, and then ignite the burner heats the sample until the battery explodes or the battery burns, and the combustion process is timed.

Test Standard: UL 1642:2012; UL 2054:2012; IEC 62281:2004; UN 38.3

Product Specifications

Model	209-HD
Control method	button control;
Burner	Bunsen burner, the inner diameter of the tube mouth is 10mm, and the length is about 100mm;
Flame application time	0~99H99M, can be set;
Diameter of test hole	100±2mm;
Test sieve	a sieve made of stainless steel wire woven with a diameter of 0.43mm (0.017inch), containing 20 meshes per inch;
The height of the flame from the screen	38mm;
Octagonal mesh cover	the distance between each pair of faces is 24" (that is, 610mm), and the eight faces are movable, which is convenient for replacement and disassembly;
The height of the octagonal net cover	12" (that is, 305mm);
Octagonal cover material	aluminum mesh, composed of 0.25mm diameter aluminum wire woven into a mesh containing 16-18 meshes per inch.
Material of battery mesh	stainless steel mesh;
Combustion gas	methane or liquefied petroleum gas (customer-provided);
Inner box size	750x750x500mm (width x depth x height);
Dimensions	1000x950x1310mm (width x depth x height, including door lock);
Pressure relief door size	200x200mm;
Smoke exhaust pipe	diameter φ100mm, located at the back of the box;
Box door	a single door opens to the left, and an explosion-proof chain is installed on the side of the box door;
Power supply	1∮, 220V, 50/60Hz, 200W
Equipment weight	about 160kg
