Details

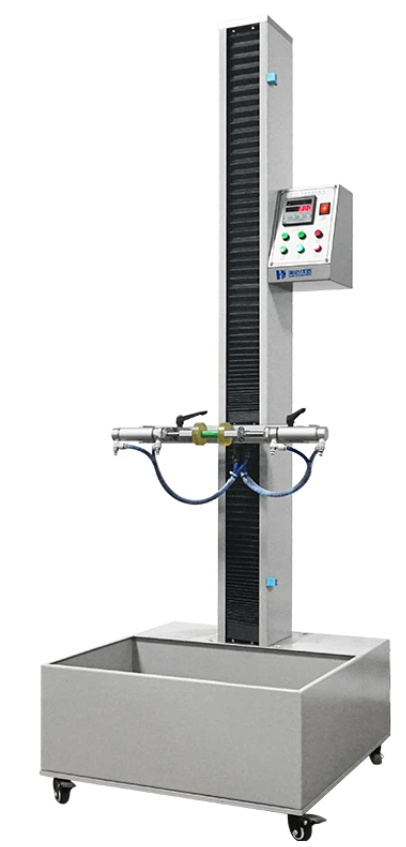

Battery Drop Test Machine
Lượt xem : 11
Product Description
It suit for cell phone, battery, electronic dictionary, building intercom, CD/MD/MP3 and other small consumer electronic products and parts free fall test. This machine uses pneumatic structure, and it will be tested place in a special fixture, press the down button, when the cylinder is released, the test piece will be free fall test. Drop height is adjustable.
Test Standard
UL 1642:2012; UL 2054:2012; IEC 62281:2004
Product Specifications
| Model | HD-H202 |
| Max. weight of test piece | 5kg±100g |
| Drop height | 400 ~ 1500mm (adjustable) |
| Drop height accuracy | ± 1mm |
| Clamping method | air pressure adsorption |
| Clamping force | 50N-400N |
| Falling floor media | acrylic plate, stainless steel (customer-supplied) |
| Drop method | free fall |
| Bottom plate dimension | 560x410x10mm |
| The use of air pressure | 0.6 MPa |
Liên hệ
