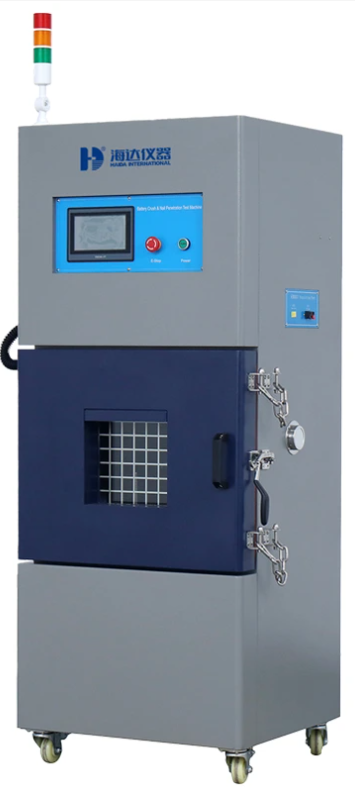

Battery Crush & Nail Penetration Test Chamber
Product Description
Battery Crush & Nail Penetration Test Chamber is used to simulate the battery penetration test of a sharp object during packaging, transportation, storage, use and disposal.
Test requirements: UL 1642, GB/T 31241-2014, MT/T 1051-2007
Product Specifications
| Model | 212-HD |
| Drive mode | Servo motor drive; |
| Control method | PLC touch screen control; |
| Force range | 1～20kN; |
| Extrusion stroke | 250mm; |
| Force value display | touch screen display; |
| Extrusion head | Extrusion head area ≥20cm²; |
| Extrusion degree | Extrusion pressure reaches 13±0.2kN, keep for 1min; |
| Test space | 200x200x200mm (width x depth x height) |
| External material | A3 steel plate and painted, thickness 1.5mm; |
| Material of inner box | SUS#304, thickness 1.2mm; |
| Steel needle | φ2mm～φ8mm high temperature resistant steel needle, the length is 100mm (can be specified); |
| Inner box size | 520x450x560mm (width x depth x height); |
| Dimensions | 800x700x1720mm (width x depth x height, including door lock); |
| Pressure relief door size | 200x200mm; |
| Smoke exhaust pipe | diameter φ100mm, located at the back of the box; |
Products Advantages
· Unmatched Testing Accuracy
Delivers precise impact force simulation to assess battery safety and reliability with confidence.
· Advanced Safety Features
Incorporates explosion-proof design, fire suppression systems, and pressure release mechanisms for maximum safety.
· Highly Customizable Parameters
Supports adjustable impact angles, forces, and testing configurations to meet a variety of international standards.
· Comprehensive Monitoring System
Equipped with high-resolution sensors and cameras, offering real-time data capture and detailed post-test analysis.
· Durable and Long-Lasting Design
Constructed with high-strength materials to ensure reliable operation under rigorous testing conditions.
· Global Standards Compliance
Fully meets international testing standards such as UN38.3, IEC 62133, and UL 1642, ensuring worldwide applicability.
